| ICG - 401 |
| RALEIGH TYPE |
| B.B. AXLE COTTERED TYPE |
Manufactured From Low Carbon Steel,
Tempered, Ground and Plated Zinc or Chrome.
Also Available Auto Black or Center Black , Ends
- Ground Finish |
|

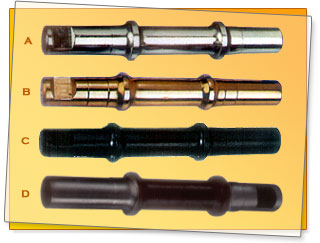

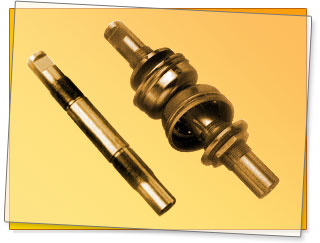

(A) B.B. Axle Cottered - Full
BCP
|
(B) B.B. Axle Cottered - Full Golden |

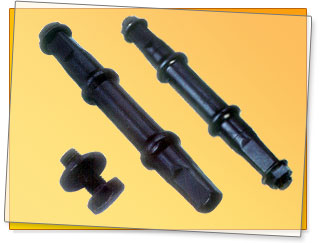

| (C) B.B. Axle Cottered - Full Black |
(D) B.B. Axle Cottered - Center Black |
|
| DIMENSIONAL CHART IN MM |
|
Model
|
Size left
|
Center
|
Right
|
T-Length
|
Dia
|
|
A-B
|
34.5
|
61.5
|
45
|
141
|
|
|
2-C
|
36
|
54
|
46
|
136
|
|
|
Y-3
|
40
|
52
|
49
|
141
|
Min 15.85
|
|
Y-5
|
36
|
54
|
46
|
136
|
Max 15.76
|
|
Y-16
|
36
|
57
|
46
|
139
|
|
|
SLR
|
36
|
55
|
47
|
138
|
|
|
MINI
|
51
|
56
|
51
|
158
|
|
|
MX Special Sizes
|
45
|
55
|
45
|
145
|
|
|
#69
|
45
|
57
|
45
|
147
|
Min 15.85
|
|
FR-1
|
37
|
56
|
44
|
137
|
Max 15.95
|
|
FR-2
|
45
|
58
|
45
|
138
|
|
|
